GIGABYTE Z890 AORUS TACHYON ICE
Intel Z890チップセット搭載、OCに特化したAORUS TACHYONシリーズ E-ATXサイズマザーボード
- intel Core Ultra プロセッサー (シリーズ 2) 対応
- 18+1+2 デジタル電源フェーズ設計
- D5 Bionic Corsa によるメモリ性能強化
- 優れた互換性:2*DDR5 スロット (XMP 対応)
- AORUS AI SNATCH:AI 補助による自動 OC 機能
- AI Perfdrive:最適な BIOS プリセット・プロファイル
- WIFI EZ-Plug:Wi-Fi アンテナ線のワンタッチ着脱可能
- EZ-Latch Plus:ネジ不要 M.2 SSD 着脱可能
- EZ-Latch Click:ネジ不要 M.2 ヒートシンク着脱可能
- 高速ストレージ:1*PCIe 5.0 x4 & 3*PCIe 4.0 x4 M.2 コネクタ
- 優れた放熱性:VRM 用 Thermal Armor Advanced & M.2 Thermal Guard ヒートシンク
- 高速ネットワーク:5 GbE 有線 LAN & Wi-Fi 7
- 充実した接続性:THUNDERBOLT 4 (DP-Alt 対応)
- 高音質オーディオ:ALC1220 & WIMA 高品質音響コンデンサ搭載
- Ultra Durable PCIe アーマー:PCIe x16 スロット用金属製バックプレートによる耐久性強化
- PCIe UD Slot X:従来の約10倍強度を有する PCIe 5.0 スロット
JANコード: 4719331870898
- 説明
説明
説明
製品名 | GIGABYTE Z890 AORUS TACHYON ICE |
対応ソケット | LGA1851 |
対応CPU | Intel® Core™ Ultra Processors L3 cache varies with CPU ※詳細については、メーカーの CPUサポートリスト をご参照ください。 |
搭載チップセット | Intel® Z890 Express |
メモリスロット | 2 x DDR5 DIMM |
対応メモリスピード | DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s メモリモジュール ※詳細については、メーカーのメモリーサポートリストをご参照ください。 |
メモリスロット最大搭載容量 | 最大128GB(64GB x2) |
メモリチャンネルアーキテクチャー | デュアルチャンネル |
対応メモリプロファイルタイプ | XMP |
ECCメモリ対応 | ECC Un-buffered DIMM 1Rx8/2Rx8 メモリモジュール non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 メモリモジュール |
映像出力機能 | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x Intel® Thunderbolt™ 4 connector (USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3- 1 x front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). * Support for DisplayPort 2.1 version and HDCP 2.3 (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality. Graphics specifications may vary depending on CPU support.) |
拡張スロット | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. ** The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. |
マルチGPU対応 | - |
オーディオ機能 | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
ストレージ機能 | CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU) – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2B_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0×4/x2 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
USBポート | CPU: – 1 x USB4® USB Type-C® port onboard – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 2 x USB 2.0/1.1 ports available through the internal USB header |
ネットワーク機能 | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
無線ネットワーク機能 | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. |

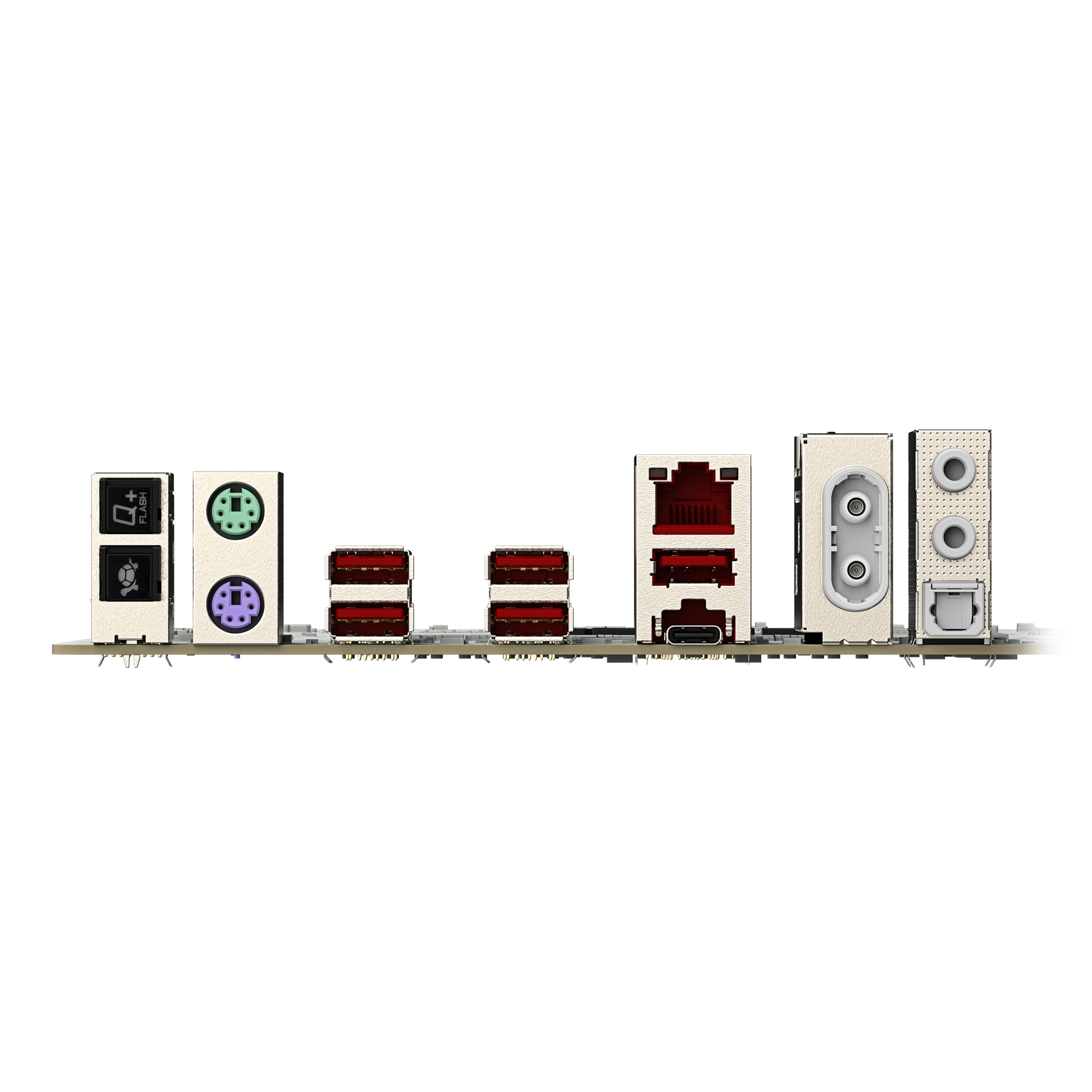

バックパネルポート | 1 x Q-Flash Plus button 1 x Protection Mode button 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
バンドルソフトウェア | Norton® Internet Security (OEM version) LAN bandwidth management software |
対応OS | Windows 11 64bit |
フォームファクター | E-ATX(30.5 x 28.5 cm) |
型番 | Z890 A TACHYON ICE |
JANコード | 4719331870898 |
製品コード | MB6793 |
発売時期 | 2025年6月6日 |
※ 記載された製品名、社名等は各社の商標または登録商標です。
※ 仕様、外観など改良のため、予告なく変更する場合があります。
※ 製品に付属・対応する各種ソフトウェアがある場合、予告なく提供を終了することがあります。提供が終了された各種ソフトウェアについての問い合わせにはお応えできない場合がありますので予めご了承ください。
